PICTURES OF THE SHARC-2 REPEATER (KS3R)

Pictures of the SHARC-2 Repeater
KS3R / R
Revised 5/31/12

Colorbar

SHARC-2 REPEATER (KS3R) - 442.500 MHz - PL: 131.8 Hz - Canonsburg, Pennsylvania

Control Operators: Ken Pollock - WB3JOB, Richard Gideon - KC3RU, Jack Kelvington - K3DMY,
Jim Mounts - KA3EBX, Mark Phillips - N8UVQ

442.500 MHz Rptr

SHARC-2 Repeater
Click on the update icon for the current status of this repeater.


The picture at left is our second repeater, which operates on the UHF Amateur Radio Band (70 Cm), and is located approximately 17 miles South of Pittsburgh in Canonsburg, Pennsylvania.

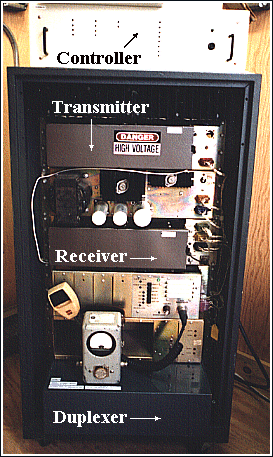

This repeater consists of an RCA 500 series base station receiver/transmitter and matching power supply. Each component is mounted into a standard 4' high, 19" wide, space saving communications rack on wheels.

The duplexer is manufactured by Phelps-Dodge, and consists of 3 band-pass & 3 band-reject tuned cavity filters.

The repeater's transmitter is capable of producing 80W of power into a Diamond X-500HNA dual band antenna, located at the top of a 120' free standing tower.

The repeater controller, which provides numerous features such as courtesy tone, tail, timeout, and remote control capabilities was designed and built by Jim - KA3EBX, and is located on top of the rack.

Future plans are to link this repeater with it's sister repeater on the frequency of 145.130 MHz. The repeater is maintained and operated by Jim - KA3EBX, and serves the Greater Pittsburgh Area.

Special thanks goes out to Jim Milbower, Coordinator of Cecil Township Emergency Management Agency and Jack Kelvington - K3DMY, for providing a roomy and comfortable home for the repeater.

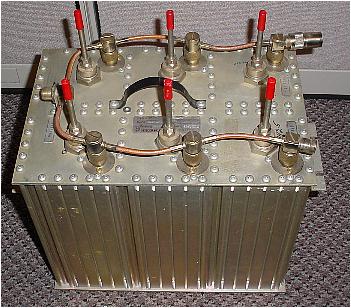

New SHARC-2 Duplexer

New SHARC-2 Duplexer
Sinclair Technologies
Model Q-3330 Res-Lok

Click here to view the duplexer plots of the SHARC-2 Repeater.
